Install or move a smart charger
How to install a smart charger and keep it online: where to place it, how to connect power and Ethernet, what your network needs, how to connect several chargers, and what to do when you move a charger.
Video guide
This one-minute video shows how to install a smart charger: where to place it, how to connect it and what your network needs.

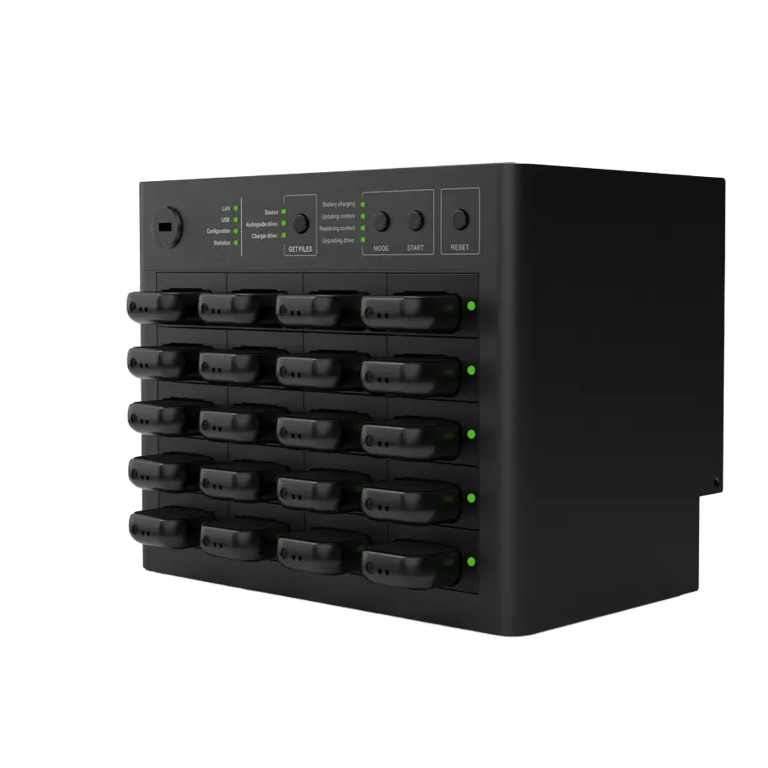

Place and connect the charger
Place the charger near a power socket and a network socket, and leave 15 to 20 cm of free space around it. Connect the power cable and an Ethernet cable, then switch the charger on with the red switch at the back. The LAN light comes on. The charger needs no network settings, because it gets its network address automatically.
Connect several chargers
To connect several chargers, use a standard Ethernet network switch. Make sure the firewall lets each charger reach look2guide.com. If some chargers do not connect, start with one or two and check that they appear under Devices in Look2Guide before you add the others.
Confirm power and network before installation
A connected smart charger must have stable power and a working network connection. Before relying on automatic statistics, confirm that the charger can reach the internet from the installation location and that the local network allows outbound HTTPS traffic to Look2Guide.
Tell support before moving chargers
If a charger is moved to another building, museum, network, VLAN, or internet provider, tell Look2Guide support before or immediately after the move. A new site network can have different firewall rules, proxy behavior, or public IP reputation, and that can stop statistics uploads.
Check local firewall and proxy behavior
If statistics stop after a move, ask the local IT team whether a firewall, proxy, captive portal, or traffic inspection system is between the charger and the internet. These systems can block requests or modify them in a way that security systems reject.
Check charger visibility in Look2Guide
In Look2Guide, open the project and check the Devices or Chargers area. Confirm that the expected chargers are assigned to the project and that recent activity appears. Missing recent activity usually means the charger has not successfully uploaded data recently.
Recovering missing data
Do not reset or replace equipment before contacting support. In many cases the audio guides still hold usage data until it is uploaded. Support can advise whether the data can be recovered through the charger or by using a manual upload workflow.
Restart the charger
Sometimes, simply switching the charger on and off, through the red switch on the back of the charger, can solve the issue. Give it a try, wait around 30 seconds and see what happens.
Send useful troubleshooting details
When contacting support, include the project name, charger location, approximate time the issue started, whether the charger was moved, the network provider or IT contact if available, and whether other internet-connected devices work on the same network.
Next: configure the charger
Once the charger is installed, link it to your project. See Configure a smart charger.
